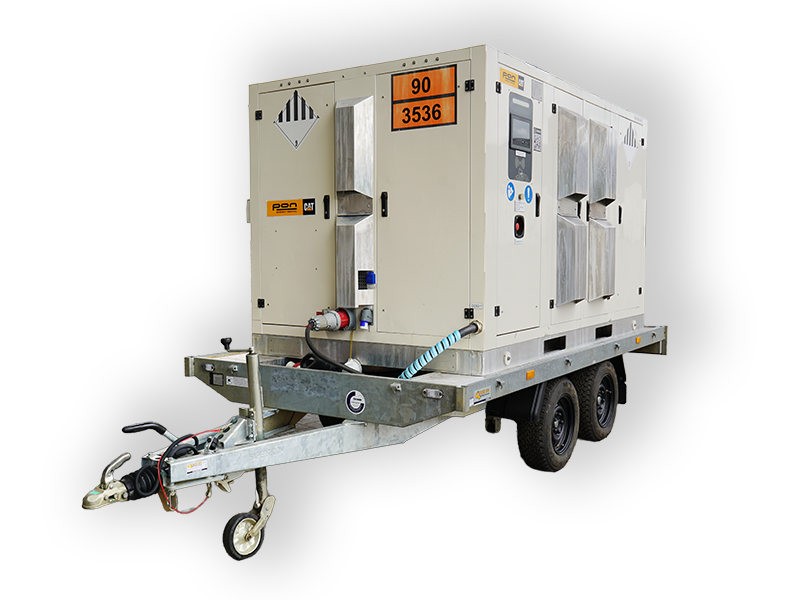

CQ-S RT mobile energy storage
Nominal energy
229 kWh
Available energy
200 kWh
Re-charge connection - AC
400VAC, 50Hz, 125A, 86kW, 3P+N+PE, CEE
Re-charge connection - DC
320-461V DC, 250A, CCS Type 2
Discharge connection - DC
200-920V DC, 200A, CCS Type 2
Discharge connection - AC
230V, 50Hz, 16A, 1P+N+PE
Cable length
6 m
Maximum DC Current for discharging
200 A
Nominal round-trip efficiency (IEC 62933-2-1)
>82 %
IP rating
IP54
Ambient conditions
-20°C to +45°C
Cooling
Air cooled
Dimensions of the trailer [LxWxH]
3350 x 1800 x 800 mm
Dimensions of the unit [LxWxH]
1
2700 x 1600 x 2430 mm
Weight (unit only)
3000 kg
Weight (total)
3465 kg
Detection
Fire
Remote monitoring
Ethernet/EiFi or GSM
Communication
Open charge point protocol 1.6
Details are given for guidance only. Exact equipment may vary according to geographical location and availability.
- Height including the trailer.
