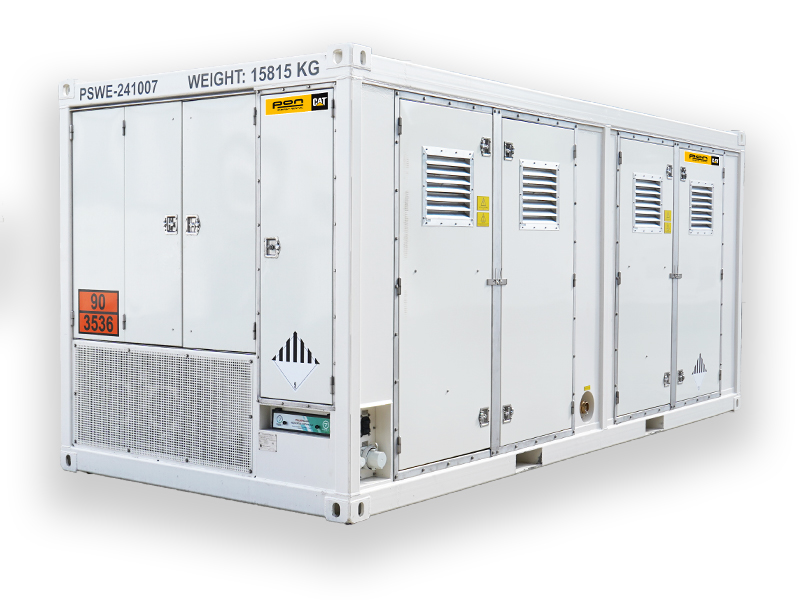

CQ-L mobil hurtiglader
Apparent power @ 400 V AC
110 kVA
Voltage in
400 VAC
Voltage out
400 VAC
Voltage in
800 VDC
Voltage out
150-1000 VDC
Real power
360 kW
Current
500 Amps
Nominal energy
1068 kWh
Available energy
960 kWh
Short circuit current
160% <2 sec
Efficiency (IEC62933-2-1)
>82 %
Typical charge time
3.3 - 6.7 hours
Battery chemistry
NMC
Battery system voltage
60 VDC
Cycle life
4000
Maintenace charge interval
*
Charge connection AC
Powerlock 660A
Discharge sockets AC
1 x 16A 3P+N+PE, 2 x 32A 3P+N+PE, 1 x 63A 3P+N+PE, 1 x 125A 3P+N+PE
Discharge sockets DC
CCS Type 2
Charge sockets DC
CCS Type 2
Standby connection
16 Amp Schuko
Enclosure
20 ft. Container
Dimensions [LxWxH]
6058 x 2438 x 2591 mm
Noise
63 - 78 dB
Weight
15 815 kg
IP degree
54
Ambient conditions
-25 - +35 °C
Relative humidity
0 - 95 %
Max. working altitude
3 Mtr
Cooling concept
Air-to-air
Cable length DC
5 Mtr
Controller
PSW Energy Management System CCS2
Certification
CE/UL9540A
Fire detection
Smoke detector
Fire suppression
Internal nozzle with water connection from outside
Remote monitoring
Yes, 101 solutions
Communication
RJ45 TCP/IP. (OCPP)
Application
Charge on-grid. Discharge off-grid
Details are given for guidance only. Exact equipment may vary according to geographical location and availability.
* SOC must be monitored during storage. If a low SOC alarm occurs, the battery must be recharged to 50% SOC. Best practice is to maintain the battery between 20–50% SOC during storage.
