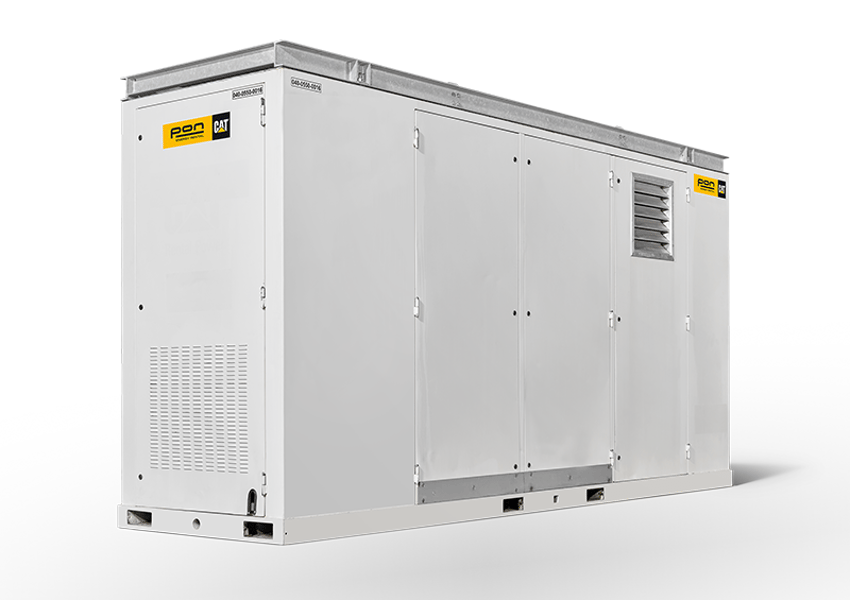

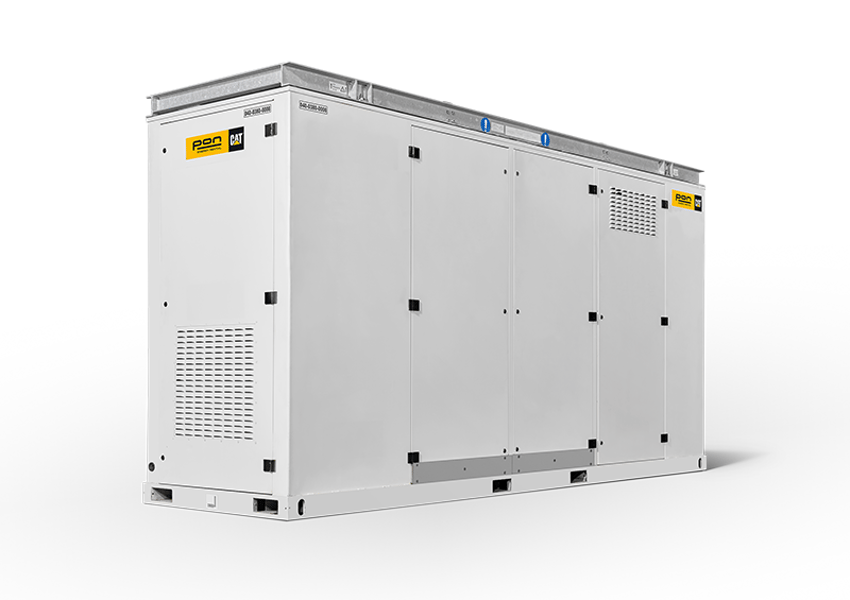

Hot water system 600
Download
Specifications
Heating capacity
1
560 kW
Power supply
400V/3Ph/50Hz/PE
Power connection
CEE 32A (5-pole)
Max. power consumption (incl. pump)
10.5 kW
Power protection (slow fuse)
25 A
Fuel consumption
2
59.8 L/hr
Hydraulic connections (DIN11851)
80 DN [mm]
Max. operating pressure
10 bar
Pump speed
Variable
Plate heat exchanger
5
Standard integrated *4
Forklift pockets / Lifting points
Yes / Yes
Dimensions [LxWxH
2991 x 2438 x 2591 mm
Weight
4350 kg
Max. sound pressure @ 10m
65 dB(A)
Details are given for guidance only
- At average boiler water temperatures of 60°C inlet and 80°C outlet
- Based on maximum capacity
- Transport length. When chimney installed, L= 3491
- Including integrated controls for stable wide range water outlet temperatures
- Boiler circuit and customer circuit fully hydraulic seperated
